Features:
- Motorized center seal system as standard (Only for CS and VMA model)
- Piece counter, batch production setting possible
- Measurement pack length
- Real-time output
- Control of irregular packs
- Reduced power consumption
- Packing film requirement: Polyolefin (POF), Polyethylene Micro Perforated Film (PE), thickness from 10 to 50µ. Note: single layer PE is not applicable.
- Compliance with CE regulations
Options:
- Printing mark registration device for printed film
- Additional In-feed and out-feed belt conveyor
- Kissing belt for small product.

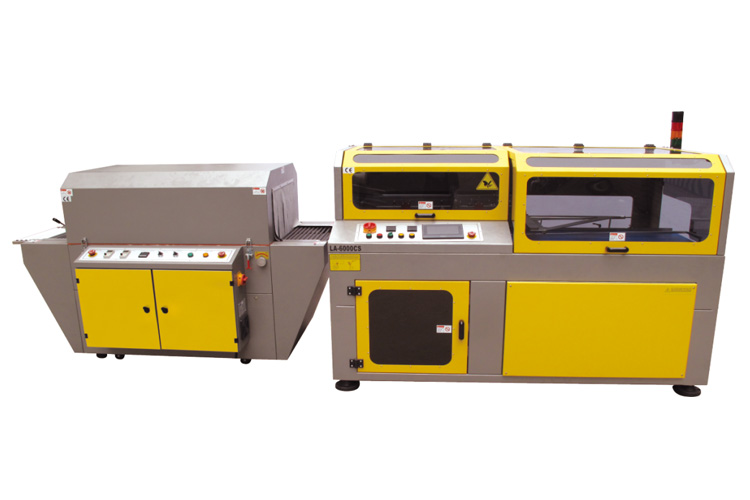

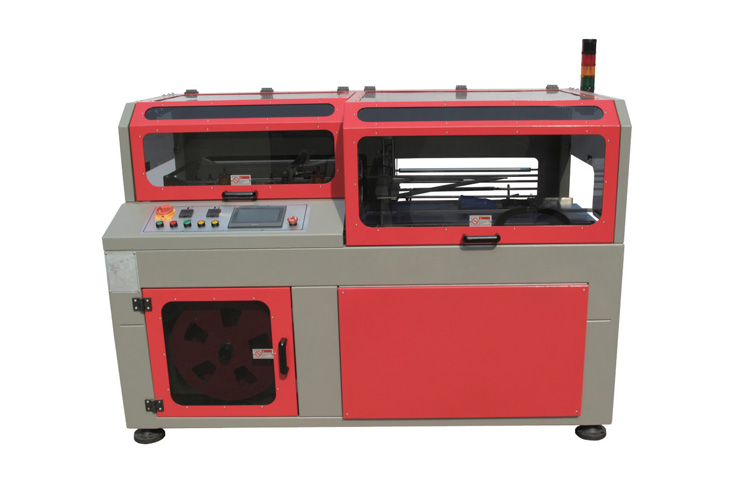

| Model No. | LA-6000CS | LA-6000 | LA-5000 |
| Power supply | 220V/1PH/50HZ/3200W | 220V/1PH/50HZ/3000W | 220V/1PH/50HZ/2800W |
| Air Supply | 6 bar/ 90L per min. | 6 bar/ 90L per min. | 6 bar/ 60L per min. |
| Sealing bar Dimension | 610 x 480 mm | 610 x 480 mm | 480 x 420 mm |
| Maximum pack height | 200 mm | 120 mm | 80 mm |
| Speed of conveyors | 30m per min | 30m per min | 30m per min |
| Average output per hour | 45 ppm | 45 ppm | 45 ppm |
| Center seal function | Yes | No | No |
| Machine size (LxWxH)(mm) | 2040 x 1550 x 1650 | 2040 x 1550 x 1650 | 1300 x 1450 x 1650 |
| Packed machine size (LxWxH)(mm) | 2160 x 1730 x 1620 | 2160 x 1730 x 1620 | 1420 x 1630 x 1620 |
| Machine weight (NW/GW)(Kg) | 610/ 780 kg | 580/ 750 kg | 390/ 500 kg |

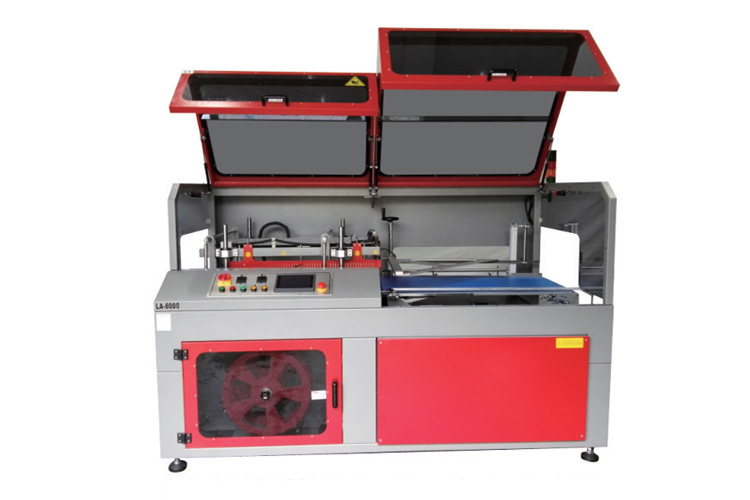

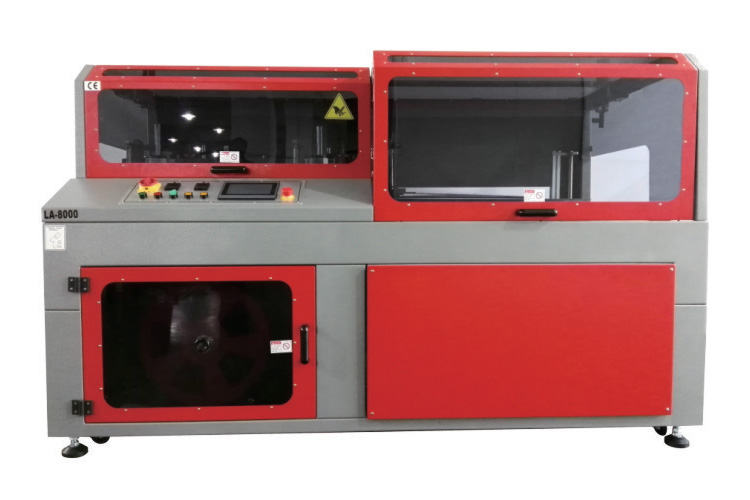

| Model No. | LA-8000CS | LA-8000VMA | LA-8000VMB |
| Power supply | 220V/1PH/50HZ/3600W | 220V/1PH/50HZ/4600W | 220V/1PH/50HZ/3400W |
| Air Supply | 6 bar/ 90L per min. | 6 bar/ 10L per min. | 6 bar/ 90L per min. |
| Sealing bar Dimension | 860 x 670 mm | 860 x 670 mm | 860 x 670 mm |
| Maximum pack height | 250 mm | 300 mm | 200 mm |
| Sealing rack driven by | Cylinder | Servo motor vertical motion | Cylinder vertical motion |
| Speed of conveyors | 30M per min | 30M per min | 30M per min |
| Average output per hour | 35 ppm | 35 ppm | 35 ppm |
| Center seal function | Yes | Yes | No |
| Machine size (LxWxH)(mm) | 2473 x 1713 x 1670 | 2473 x 1713 x 1670 | 2473 x 1713 x 1670 |
| Packed machine size (LxWxH)(mm) | 2580 x 1840 x 1570 | 2580 x 1840 x 1570 | 2580 x 1840 x 1570 |
| Machine weight (NW/GW)(Kg) | 750/950 kg | 780/980 kg | 750/950 kg |
| Machine allows a simple and precise control of all the machine operations, such as: | |
| 1. | Possibility of storing up to 10 different operation programs |
| 2. | Automatic control of the sealing bar height (Only for CS model) |
| 3. | Double adjustment of the sealing blade temperature, both lengthways and broadways |
| 4. | Possibility of packing single packs or muitipacks |
| 5. | Speed of conveyors electronically adjustable from the control panel |
