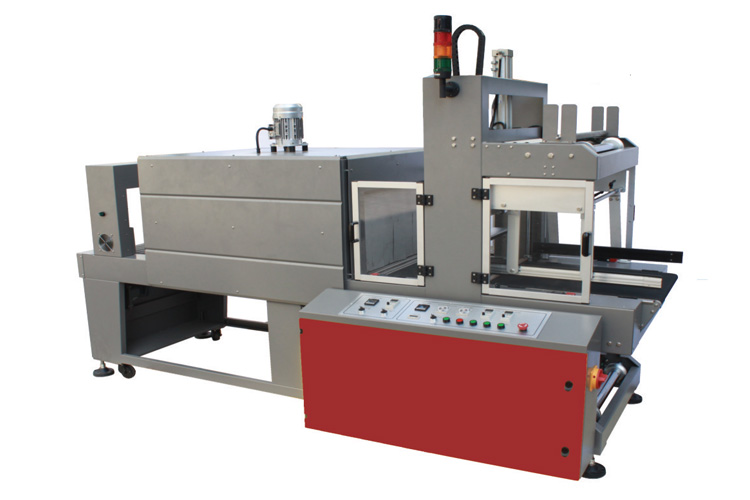

Shrink Packaging Machines
1. | Automatic wrapper and tunnel combo design, very compact, save space. |
2. | Conveyor with adjustable speed controlled by inverter |
3. | Motorized upper and lowerfilm unwinding |
4. | Mono-chamber tunnel |
5. | Shrink tunnel with PID temperature controller, temperature tolerance ± 1°C |
Model No. | APW-6030MT | APW-6030DT |
Voltage supply/ Installed power | 380V/3ph, 14 KW | 380V/3ph 14KW |
Compressed air pressure and consumption | 6 bar, 50L/min | 6 bar, 40L/min |
Sealing bar | 600mm | 600mm |
Conveyor | No | Yes |
Maximum product height | 300 mm | 300 mm |
Max. output | 10 P/min. | 12 P/min. |
Working height | 850mm | 850mm |
Maximum size of film reel | W 600- φ 350mm X2 | W 600-φ 350mm X2 |
Machine size (LxWxH) | 3110X1360X2410 mm | 3100X1360X2140 mm |
Packed machine size (LxWxH) | 3260X1460X2230 mm | 3260X1460X2230 mm |
Machine weight (NW/GW) | 765/1150 | 765/1150 |
This machine is designed for the PE wrapping of heavy object packaging. It able to handle both single and multi- packs, such as a bunch of soft-drink tray, bottles, boxes, etc…
