Shrink Packaging Machines
# | Feature |
1. | Anti-adhesive Teflon Coated Sealing Blade ensures neat and firm seal without smoke pollution. Overheat protect function extends the lifespan; hand clamping protect device avoids mistakenly damaging the product and also for the safety of the operator. |
2. | Dual magnet clamping increases the sealing force ensuring a firm seal. |
3. | Easy adjustment of sealing and conveyor time. |
4. | Quick film loading Design and advanced pin perforation device. |
5. | Selected electrical components from reliable international manufacturer. |
6. | Heavy duty castor with lock device makes an easy move and locate. |

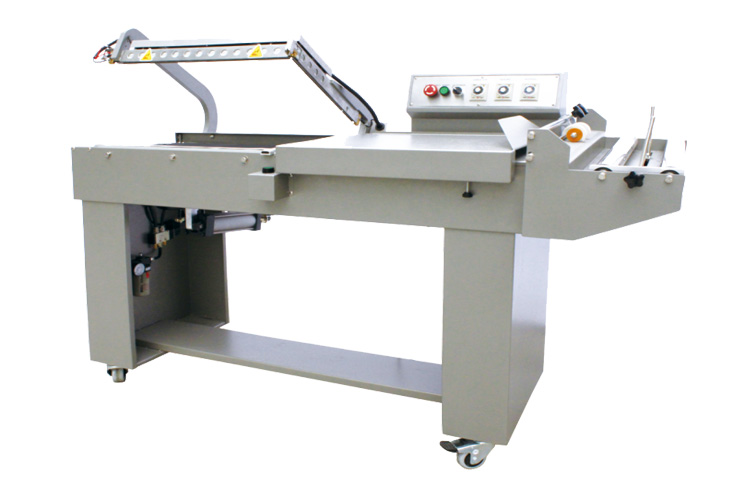

7. | AP-1622AP Type, Pneumatic Cylinder Type Sealer offers Manual and Auto Mode for operation. The whole sealing cycle is done by cylinder, which lessens power of work and improves efficiency. |

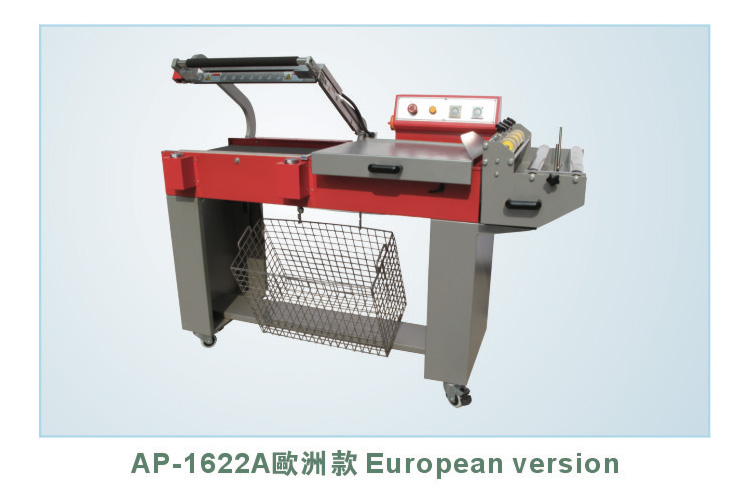

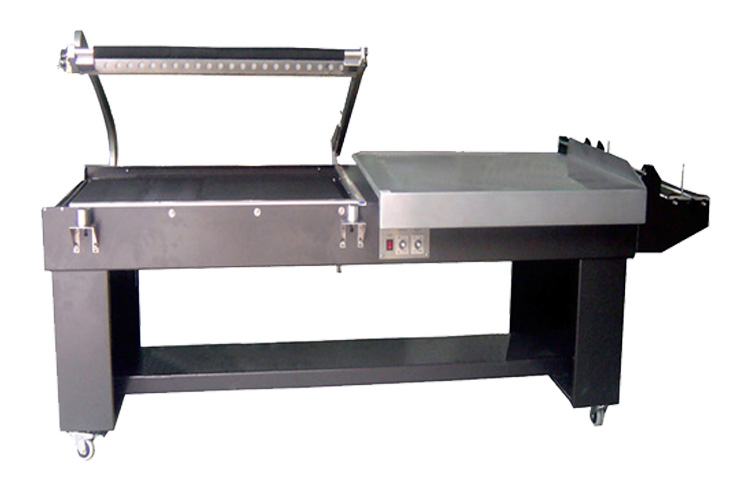

Model No. | AP-1622A | AP-1622AP | AP -2028A | AP-2028AP |
Max Sealing Size | 550X400 | 550X400 | 700X500 | 700X500 |
Voltage | 220V/1ph | |||
Compress Air | — | 0.6MPA | — | 0.6MPA |
Machine Size (Lx W x H) | 1600X775X1000 | 1600X775X1100 | 1900X875X1000 | 1900X875X1100 |
Packed machine size (Lx W x H) | 1410X760X1170 | 1410X760X1170 | 1710X860X1180 | 1710X860X1180 |
Equipment weight (Kg) | 145/190 | 145/190 | 210/265 | 210/265 |

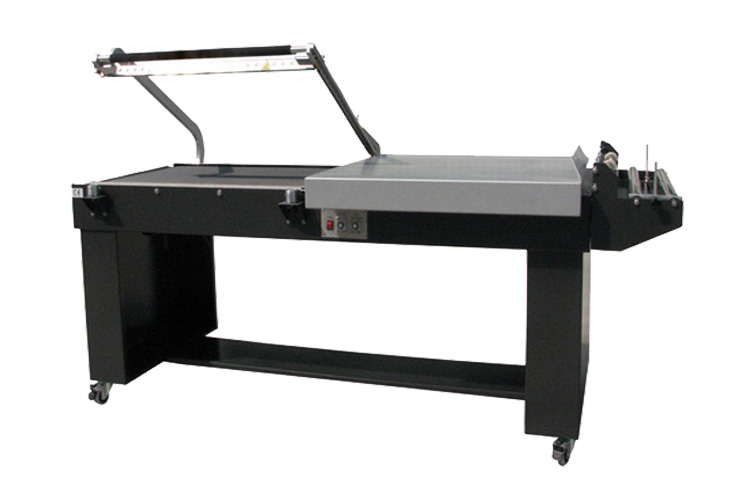

Model No. | AP -3040A | AP-3040AP | AP-4048AP |
Max Sealing Size | 1000X750 | 1000X750 | 1200X1000 |
Voltage | 220V/1ph | ||
Compress Air | — | 0.6MPA | 0.6MPA |
Machine Size (Lx W x H) | 2500X1125X1000 | 2500X1125X1100 | 2910X1300X1100 |
Packed machine size (Lx W x H) | 2310X1210X1270 | 2310X1210X1270 | 3020X1490X1320 |
Equipment weight (Kg) | 345/440 | 345/440 | 680/880 |
※Special size available on request

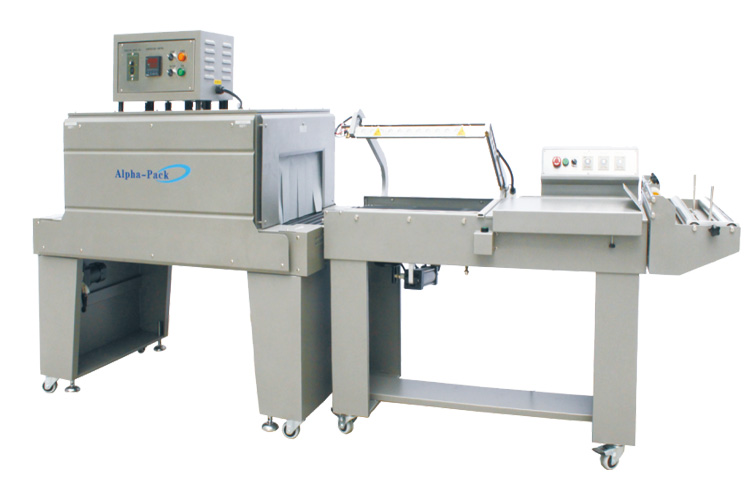

This machine is an economic solution for packaging of any solid product. It may couple with APT-1810 Heat Shrink Tunnel to form a completed packaging line.
