Application:
Dry & Processed Food, Fresh Food, For example: Snack Food, Seeds (Pulses), Nuts, Coffee (granules/ beans), Tea, Sugar, Grated Cheese, Bakery Products, Candies & Confectionery, Rice, Nuts & Dried Fruits, Spices, Pasta, Pet Food (pellets) etc.
Other: Non Food. For example: Medium Nuts, Bolts, Washers, Auto, Electrical and Plumbing Parts etc.
Standard Features:
- Automatic Combination weighing and vertical packaging combine in one single unit machine (2 in 1 technology).
- With one frame, one electric cabinet, one electric plug only.
- Strict height control and space saving, easy for cleaning and maintenance.
- Suitable for small and medium packaging application with high speed and accuracy request.
Options:
- Servo motor drives horizontal sealing
- Hole punching device

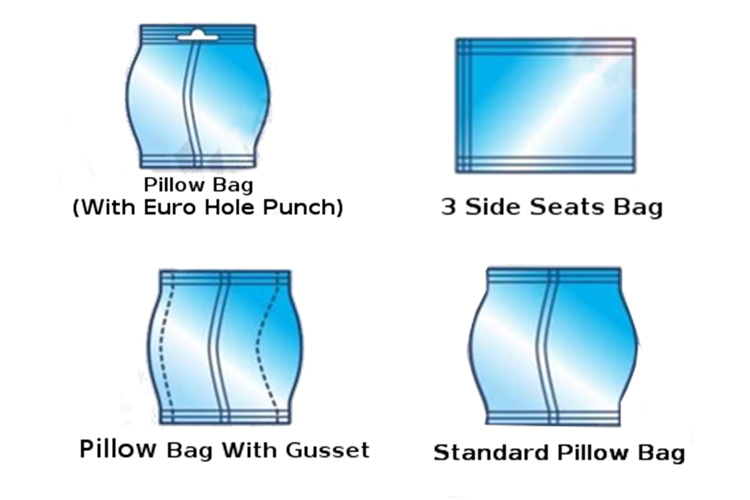

- Gusset bag forming device
- Tear notch device
- Exhaust air function
- Coding device (ribbon/thermal transfer)
- Gas flush device
- Product Discharge conveyor
- Chain bag with batch cut
- Refilling device for the scale
| Model | PMW-420E |
| Touch Screen | 7 inch color touch screen |
| Weighing Head No. | 10 heads |
| Hopper Volume | 800 ml |
| Weighing range | 10-800 gram |
| Weighing accuracy | 0.5g ~ 1.5g |
| Max width of film | 420mm |
| Bag width | 80～200mm |
| Bag length | 80-220mm (more than 220mm, need multi seal) |
| Bag pulling system | By Servo Motor |
| Horizontal sealing system | By air cylinder |
| Max. Speed | 60 bags/min |
| Power | 4.5KW, 220V 50/60Hz |
Description:
It can fully complete process including Combination-weighing, product filling, film forming, bag sealing, punching, printing, and counting.
