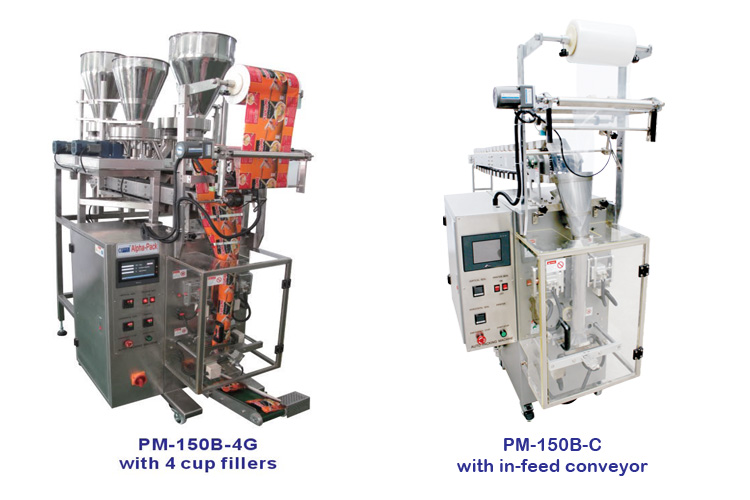

Small Volume Vertical Packing Machine PM-150 Series

Standard Feature:

  1. The machine can automatically complete the products measuring, conveying and feeding, filling and bag forming, date code printing, bag sealing and cutting.
  2. Stepping motor pull bag & Pneumatic end seal. Servo-Motor driven is available as an option.
  3. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
  4. PLC control system combined with touch screen, can easily set can change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
  5. PID temperature controller monitors heat sealing temperature within ±1°C.
  6. CE conformity

Optional Dosing Device:

  1. Auger screw Filler (for powder)
  2. Volumetric Cup Filler (for granule)
  3. Electrical Gear Pump (for liquid)
  4. Piston Pump (for liquid or cream)

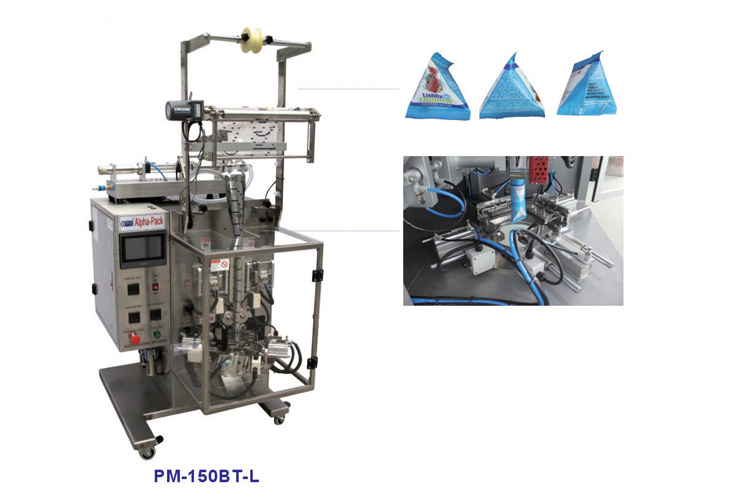

Model No. PM-150B PM-150B3 PM-150B4 PM-150BT
Filling Volume (ml) Max. 200 ml Max. 150 ml Max. 100 ml Max. 50 ml
Bag length(mm) 80-190 mm Max. 180 mm Max. 180 mm 40-100 mm
Bag width (mm) 30-120 mm 30-130 mm 30-130 mm 30-80 mm
Production Speed 30-60 ppm 30-50 ppm 30-50 ppm 20-40 ppm

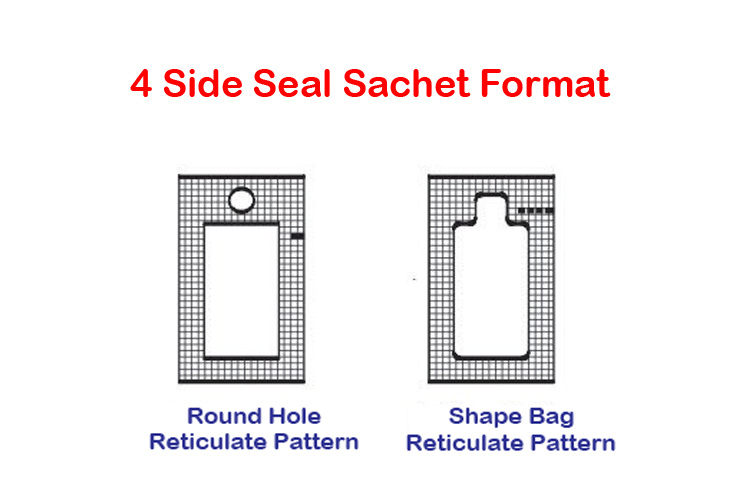

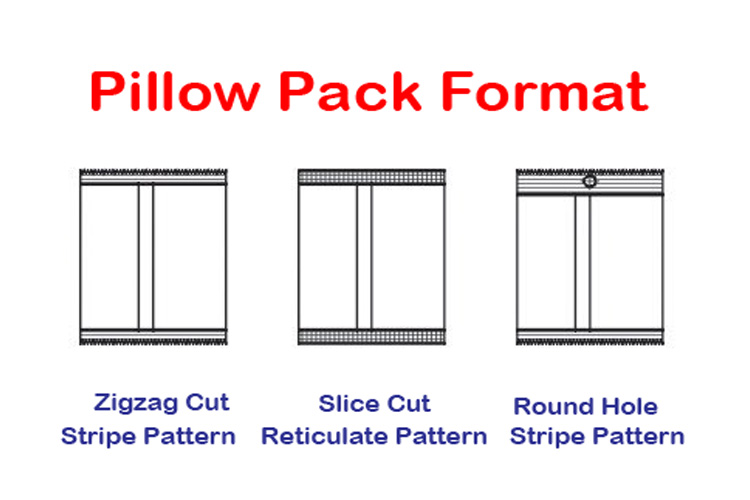

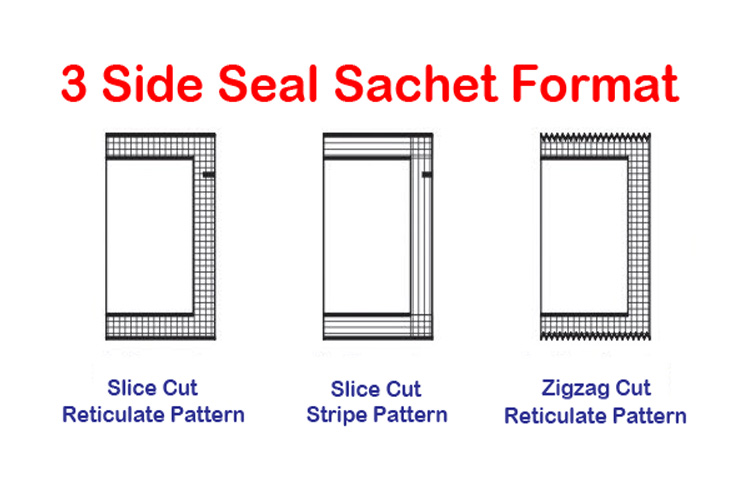

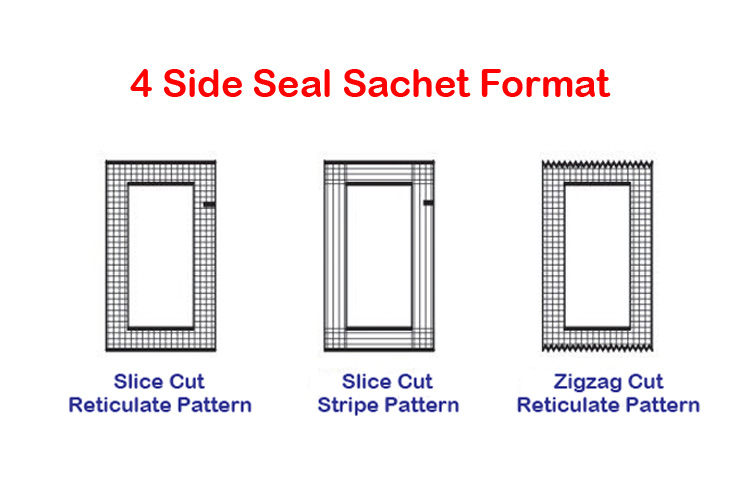

Sealing Format Pillow Pack 3 Side Seal 4 Side Seal Pyramid Pack
Film width (mm) Max. 260 mm Max. 260 mm Max. 260 mm Max. 180 mm

Application:

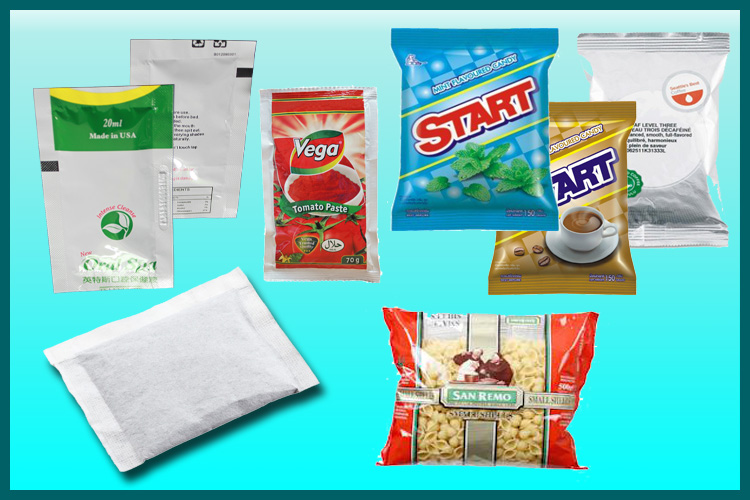

Automatic packaging of liquid, powder and granule in formed pouch for the food, pharmaceutical, chemical, and other industries.
