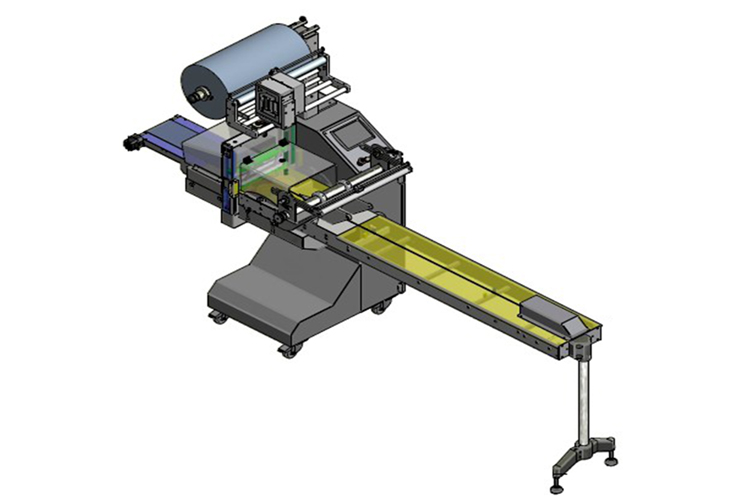

SWING-600 can be produced in three different positions: inclined 90°, vertical and Horizontal based on the product to be wrapped.
This machine is equipped with stainless steel frame (AISI 304).
The entering of the machine can be on the left.
All parts are cantilevered design for easy maintenance and cleaning.
Safety guards as required by local law. Safety standard as CEE directives.
Possibility to have machines for polyethylene film, for shrink film, etc..
On all machines is possible to install: Photocell for printed film, printer for date, line shaft for automatic feeders, etc.
Option:
Photocell for printed film
Intermittent pneumatic printer
Photocell for bag length
Gas flushing
Alcohol nebulizer
Euro slot punch
Elevator for packages collection
Respectable outfeed conveyor
Rotary pin film perforator
Motorized infeed conveyor
Motorized outfeed conveyor – 3 meter
Motorized device to unwind reels
Infeed conveyor – 1 meter
Opening pneumatic wheels
Pneumatic gusset
Easy opening bag device
Transfer thermic printer
Forming tube
Label applicator
Turning table
Weight and label applicator
Bread counter
Check weigher with vibrating channel
Photocell for end film
Independent automatic clipping machine
Model No.
SWING-600
Wrapping Speed :
20-30 Bags / Min.
Film Reel Width
600 mm
Max. package height:
*140 mm
Maximum package length:
*1000 mm
Minimum package length:
50 mm
Package width:
*50-280 mm
External film reel diameter:
300 mm
Electrical supply requirements:
230 V 50 Hz 1 phase
Power supply:
2 Kw
Machine weight:
300 kg
* The maximum measures cannot be obtained all three together.
Application This wrapper is applicable for packing all kinds of solid and regular objects, including the foods such as biscuit, bread, instant noodle, ice cream, moon cake and soft sweets, and other objects such as toilet soap, medicated essence, note book, pen pack, tape and medicines in regular shapes.
