The machine can automatically complete multi-lane products measuring, feeding, filling and bag forming, date code printing, bag sealing and cutting. And hole punching as option.
Motor driven heat seal film pulling system.
High sensitive fiber optic photo sensor can automatically trace color mark accurately.
PLC control system combined with touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
PID temperature controller monitors heat sealing temperature within ±1°C
Optional Parts for Main machine
Date code printer
CNC one piece former
3 side seal former
Empty bag detection device
Straight cut with easy tear line
Hole punching device
Fix number cutting device
Model No.
MLP-320-04
MLP-320-06
Bag Length (mm)
60-140
60-140
Bag Width (mm)
16-35
16-20
Film Width(mm)
Max. 320
Max. 320
Lanes No.
4
6
Speed (Bag/min)
120-180
180-270
Sealing Format
Fin Seal or Envelope Seal
Application:

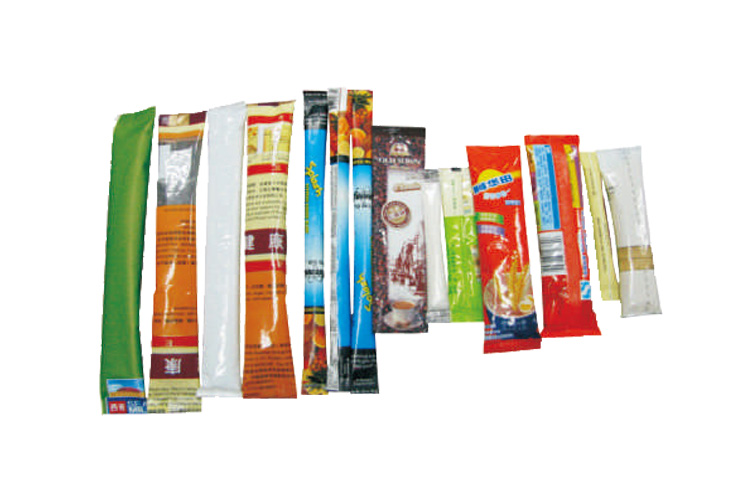

Powder, liquid, cream and granule like sugar, coffee packed in a long narrow pouch. Packing for different materials can be accomplished by different dosing unit.
