Optional Parts for Main machine
- Shorter and Compact design. Good for low proof factory and easy to couple with all kind of dosing device.

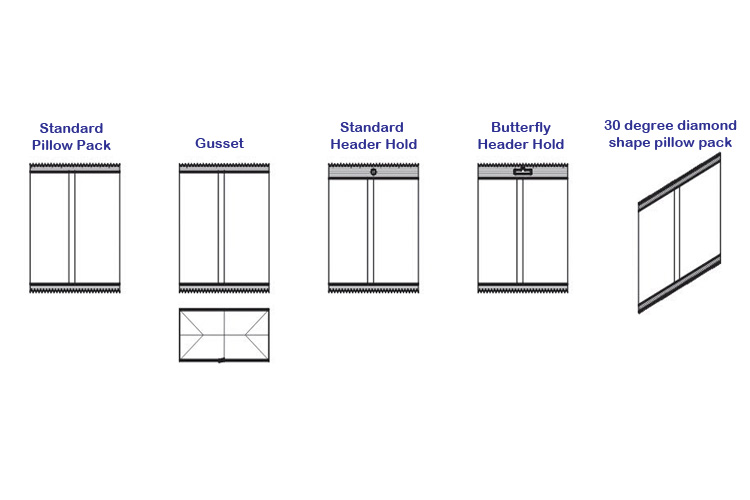

- Other feature, possible bag format, possible optional parts same as standard pillow pack machine.
| Modal No. | PM-420MN | PM-620MN | PM-720MN |
| Bag Width | 80-200 mm | 120-300 mm | 160-350 mm |
| Bag length | 80-180 mm (Bag length bigger than 180mm will pull film two times) | ||
| Film Width | 420 mm | 620 mm | 720 mm |
| Max. Speed | 20-60 ppm | 20-40 ppm | 15-35 ppm |
| Main machine size | W1084 x D1495 x H1232 mm | W1216 x D1483 x H1297 mm | W1428 x D1534 x H1397 mm |
Application
Automatic packaging of liquid, powder and granule in formed pouch for the food, pharmaceutical, chemical and other industries.
