Shrink Packaging Machines

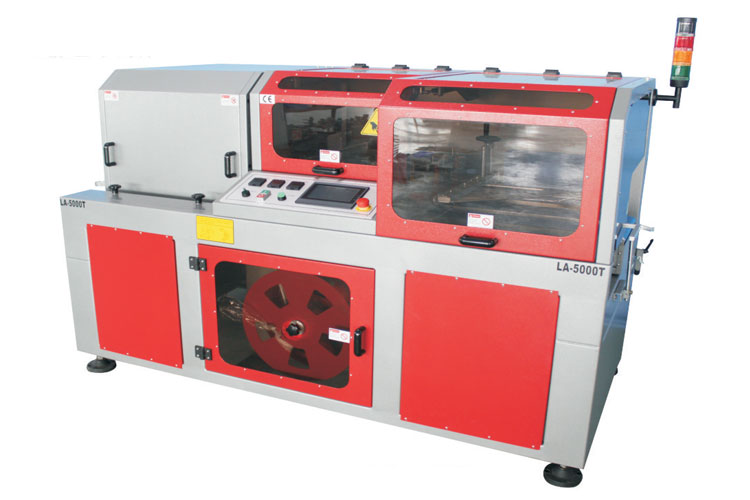

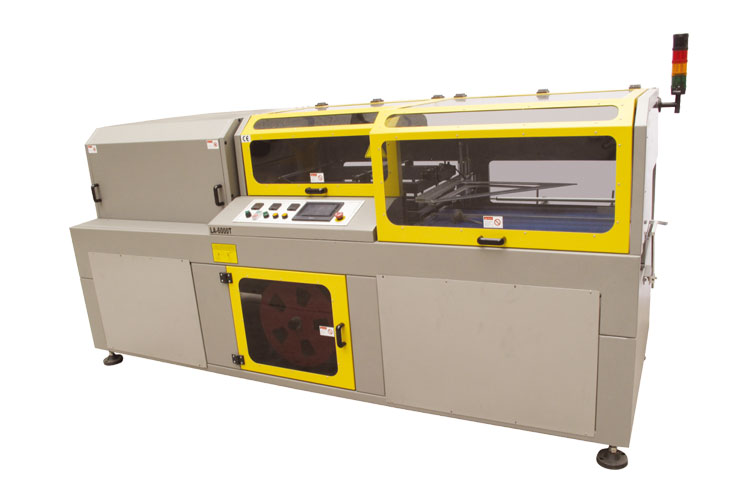

Automatic L-Type Shrink & Seal Packing Machine LA-5000T / 6000T
- Automatic L-Sealer and tunnel combo design, very compact, save space.
- Choice of vertical or horizontal-type photocell sensor to suit various product size and thickness.
- Kissing belt function, able to pack small product, single or multiple packages.
- Balanced heating elements (with separate temperature regulation)
- Color touch screen combined with PLC contol, easy to use.
- Shrink tunnel adopts advanced heater bank and adjustable high speed blower to realize re-circulating hot air, shorten the heating-up time and reduce the heat lost to ensure best shrink performance.
- PID temperature control, temperature tolerance ±1°C
- Shrink tunnel movable to make sure the products go through the center of tunnel.
Option:
- Printing mark registration device for printed film.
- Additional Infeed and outfeed belt conveyor.
|
Model No.
|
LA-5000T
|
LA-6000T
|
|
Voltage supply / Installed power
|
380-410 V, 3Ph 6KW
|
380-410 V, 3Ph 12KW
|
|
Compressed air pressure and consumption
|
6 bar; 40L/min |
6 bar; 90L/min
|
|
Sealing bar (mm)
|
480 x 450
|
610 x 480
|
|
Maximum product height (mm)
|
100
|
200
|
|
Capacity （Max.）
|
35P/min
|
45P/min
|
|
Speed of conveyors
|
10 – 25 M/min
|
10 – 30 M/min
|
| Average output per hour | 600-1800 p/h | 600/1800 p/h |
|
Working height (mm)
|
800
|
800
|
|
Maximum size of film reel (mm)
|
480 – ø 280
|
600 – ø 300
|
|
Machine size (mm)
|
2085L*1320W*H1525
|
3500L*1710W*1600H
|
|
Packed machine size (mm)
|
2160L* 1560W *H 1570
|
3600L*1830W*1800H
|
|
Machine weight(NW/GW）
|
680/825
|
890/1040
|
This is an economical solution for fully automatic shrinking & sealing packaging .
Applicable for packing all kinds of solid and regular objects, including the food, box, printing, cans, tray, hardware, etc….
Suitable for OPP,POF,PE, PVC, etc…shrink film material.
