Pre-Made Pouch Machines
Horizontal Fill-Seal Machine for Stand Up Pouch & Doy Pack AP-1BT
Standard Features
- Complete manufacture in stainless steel for food industry.
- Advanced PLC control system combined with 5.7″ Colorful touch screen control panel, can easily set and change packing parameters, display production data and self-diagnostic machine error can be viewed directly from the screen.
- 20 sets of programs.
- Fully pneumatic operating system, easy operation and maintenance.
- Integration in existing packaging line.
- Pouch feeding conveyor.
- Vacuum Pump for bag pick up and opening.
Optional Dosing Device
- Auger screw Filler (for powder)
- Volumetric Cup Filler or Multi heads weigher (for granule)
- Electrical Gear Pump (for liquid)
- Piston Pump (for liquid or cream)
Working Principle:
- Bag Picking-up
- Positioning Bag to the filling station
- Open Bag
- Product Filling (filling device is an option)
- Bag Sealing
- Bag Outfeed
| Model No. | AP-1BT (III) | AP-1BT-XL | AP-1BT-Z |
| Max. filling volume(ml) | 2000 | 5000 | 2000 |
| Bag length (mm) | 150-300 | 200-450 | 150-330 |
| Bag width (mm) | 100-260 | 200-320 | 100-260 |
| Max. Speed (ppm) | 6-12 | 5-10 | 4-10 |

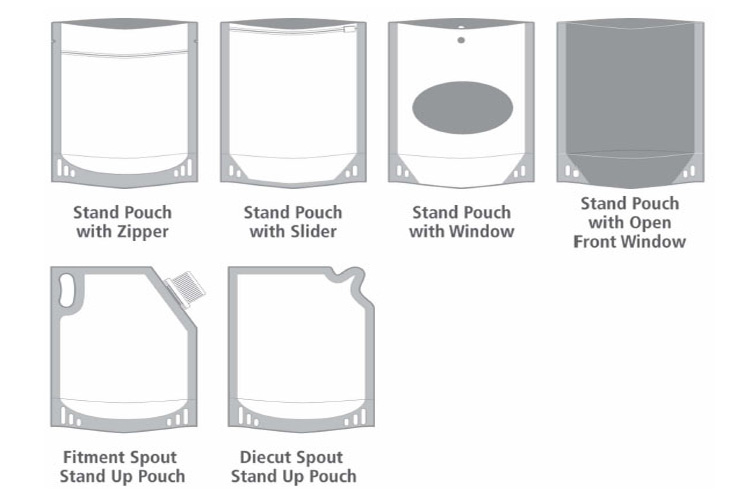

| Pouch format | Flat, Stand-up, Spout, Side gusset pouch, etc… | Zipper pouch, etc… | |
Flexible and reliable, AP-1BT, a fully automatic fill-seal machine, provide a wide variety of packaging options in one base machine. As well as, it suitable for many pre-made pouch packaging, such as Stand Up Pouches, Flat Pouch, Doy Pack, Zipper bag, side spout bag, etc…
