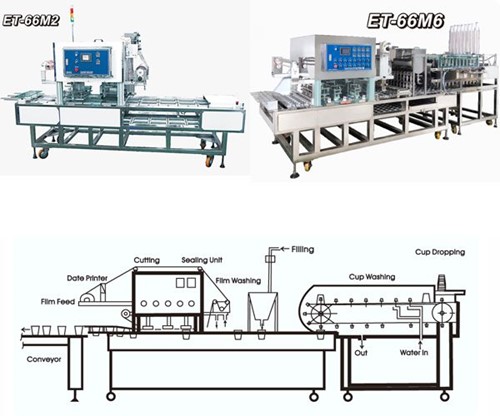

Automatic Type Sealing Machine-ET-66

Automatic Sealing Machine

Automatic Type Sealing Machine-ET-66

We can offer the professional design & manufacture for containers.

Sealing films, packing machines and fully production lines.

Enquire

Features

1. PLC with index gear conveyor, inverter speed control and touch screen operation.
2. Stainless steel frame and anodized aluminium.
3. Three models for film feeding: Sensor, encoder, timer. Available for printed & blank film.
4. Sealing and boarded cutting (Profile cut).
5. 2 sets pf separate sealer, and 1 set of cutter. Faster speed. More capacity.
6. Product track output.

Specification

Model	ET-66SS	ET-66S	ET-66M	ET-66L
Power	220/380/450V	220/380/450V	220/380/450V	220/380/450V
Capacity(psc/hr)	1000~2000	1000~4000	1000~8000	1000~8000
Max.Cup Size(mm)	170x220x100	360x220x100	260x220x100	355x220x100
Machine Size(mm) WxDxL	2000x660x1700	2500x850x1700	2500x1040x1700	3000x1230x1700

Application

1. Suitable for beverages, pudding, jelly, fast-food, snacks, various prepared foods for microwave, seasoned frozen food, pickled foods, seafood and processed agricultural products etc. which load into the cup and tray.
2. Sealable material: PP, PE, PS, PET, HDPE, EPS, PSP, metalized aluminium foil, paper box, etc.

Optional Function

1. Auto tray drop.
2. Auto filling: Liquid, heavy liquid or solid products.
3. Pre-cut lid application.
4. Product output discharger.
5. Lid capping.
6. Interchangeable base mould for sealing tool.
7. Date Printer/Coder (Hot ink manual, Times Roman 12 font, 5 rows x 9 alphanumeric lines)
8. Weightier.
