Shrink Packaging Machines

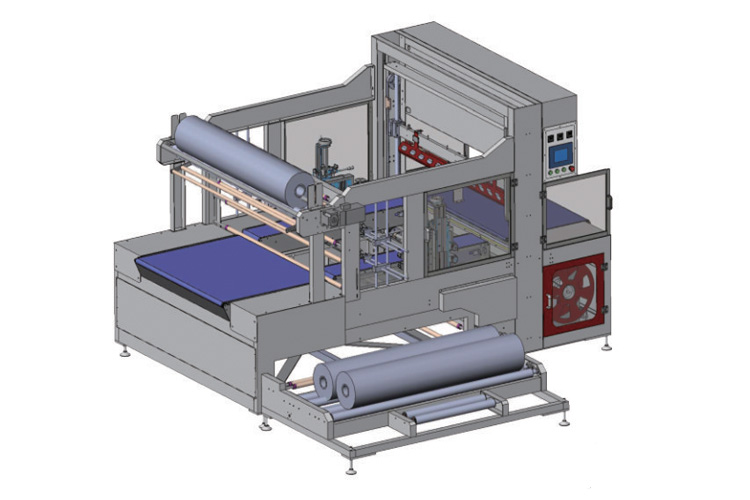

Two Side Seal + End Seal Packing Machine APW-15040-2SS / APW-15020-2SS
- This machine is designed for shrink wrapping larger packages where a machine utilising centre fold film can’t make a large enough bag. Two single wound fill rolls are utilised with adjustable side seals and a guillotine end seal.
- Each roll of fill has its own holding rack making rolls changes easy.
- The touch screen Programmable Logic Controller (PLC) with programme memory can store setting for different size packages for ease of set up. Product size changeovers can be easily modified by a hand wheel adjustment with no elements needing replacement.
- Optional in-feed and out-feed conveyors (belt or roller conveyor options available) can be added for ease of use, or set it up in-line for fully automated operation.
- Solid and durable design, suitable for heavy product wrapping.
- With two side automatic waste strip rewinding device.
| Model | APW-15020-2SS | APW-15040-2SS |
| Power Supply | 380V/ 3PH/ 5000W | 380V/ 3ph/ 7000W |
| Air Supply | 6 Bar, 30L/min | 6 Bar, 30L/min |
| Sealing bar width | 1500 mm | 1500 mm |
| Max. pack height | 200 mm | 450 mm |
| Sealing jaw driven by | Cylinder | Motor |
| Max. conveyor speed | 20m/min | 20m/min |
| Suitable product | Door, wood floor | Carton box |
| Center seal function | No | Yes |
Application:
For big size products fully enclosed four side seal. For example: Big door, big painting framing, big carton box and so on.
