Standard Feature
- Adopt solid stainless steel heater, durable with low power consumption.
- Digital Temperature Controller.
- Conveyor speed adjustable.
- Live Roller Rod Conveyor adopts durable solid roll outer coated with silicone rubber to prevent dust and stand fire. (Option: Teflon Mesh Overlay Conveyor)
- Automatic Shutting-Off Function can automatically switch off the power when the tunnel temperature drops below 70°C, ensuring maximum life span and saving the waiting time.
- Selected electrical components from reliable manufacturer.
- Easy adjustment of tunnel height to suit products in various heights.
| Model No. | APT-1810 | APT-2212 | APT-1810/2 | APT-2816/2 |
| Tunnel Size | 1000X450X250 | 1200X550X300 | 1800X450X250 | 1800X700X400 |
| Voltage | 380V/3ph | 380V/3ph | 380V/3ph | 380V/3ph |
| Power | 10Kw | 10Kw | 20Kw | 24 Kw |
| Machine Size | 1655X830X1555 | 1850X930X1600 | 2455X1020X1530 | 2455X1080X1700 |

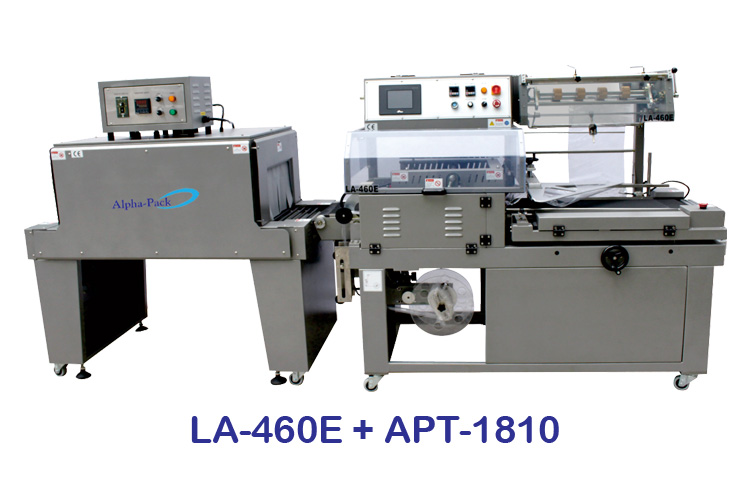

| Coupling L Sealer | AP-1622A | AP-2028A | APSS-5022 or LA-460 | APSS-7522 or LA-680 |
| Packed machine size (LxWxH) | 1650X880X1070 | 1860X980X1130 | 2590X1150X1770 | 2300X1410X2000 |
| Machine weight(NW/GW) | 250/320 kg | 300/365 kg | 450/550 kg | 700/880 kg |
Application
An industrial heat shrink tunnel use heat to shrink film around packages. This machine is designed to work with L bar sealer or sleeve wrapper bundler, but also stand alone for shrink banding applications, is compatible with a wide range of standard product sizes and offer optimum shrink performance while using minimum space.
