1.

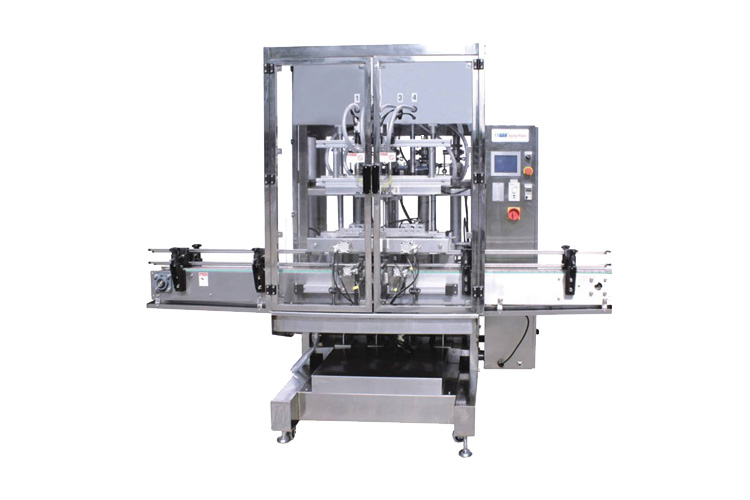

Piston pump filling, Cylinder driven piston and main cylinder for filling nozzle up and down.
2.
Machine construction in Stainless Steel #304, contact parts are made in SS #316.
3.
Different material of O rings for different application.
4.
PLC combined with touch screen control system.
5.
Filling Volume can be roughly adjusted together for all the pumps and make fine adjustments individually for each pump.
6.
Bottom diving filling type avoids foam during filling.
7.
No change parts are required for different bottle sizes.
8.
No bottle, no filling safety device
Option:
1.
Infeed and outfeed turn table
2.
Material tank on top
3.
Safety Transparent cover for safe operation circumstance and dust-proof.
4.
Special Bottle Shape Moulds or bottle feeding auger
Model AFL-840 AFL-860 AFL-880
Filling Range
A: 100-250ml; B: 200-500ml; C:400-1000ml; D: 800-2500ml; E:2000-5000ml
Air Pressure
0.6Mpa
Power
220V/1ph/50-60Hz;
Max. Filling Capacity
30B/min
45B/min
60B/min
Filling Nozzles
4
6
8
Filling Pump
Stainless Steel Piston Pump
VIDEO
Application This machine is designed for handle water-thin to mid-viscid product. This product can be widely used in chemical, pharmaceutical, pesticide, cosmetic and food industry.
